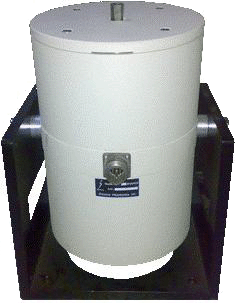

JZK-100
- Small size, lightweight
- Made of rare earth permanent magnet
- Use as small vibration table, modal shaker
-
Apply with structural vibration experiments, Modal test/Dynamic structural simulations, Fatigue testing of parts, Accelerometer and other sensor calibration etc.
|
|
|
35A |
Impedance: |
0.9Ω |
Input Mode: |
Connection socket |
Max. Peak Force(N) , Sin/Random:
|
1,000/700 |
Max. Peak Rated Travel: |
± 10 |
Max. Acceleration: |
820ms-2 |
Non-Linearity: |
< 3% |
Output Mode: |
Table or mandril |
Mounting Screw: |
M5 |
| Environmental Characteristics |
Operating Temperature: |
-30 to +70°C |
Storage Temperature: |
-55 to +85°C |
Moisture: |
Maximum 95%R.H. |
| Frequency Characteristics |
Main Resonance Frequency: |
> 1,000Hz |
Frequency Range: |
10 - 2,000Hz |
|
Φ280mm x 250mm |
Weight: |
40kg |
Effective Moving Mass: |
1.2kg |
| Suspension Stiffness: |
3N/mm |
| Recommended Power Amplifier |
|
YE5878 (1,500W) |
Signal Generator: |
YE1311 series |
|
      |
|
