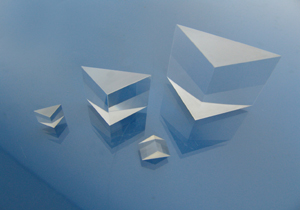

Right Angle Prism:
Specifications:
Material: BK7 grade A
Dimension Tolerance: ± 0.1mm
Clear Aperture: 80% Dimensions
Surface Quality: 60-40 or 20-10
Surface Flatness: λ /8 or λ /4 @ 633nm
Angle Tolerance: see table
Bevel: 0.3mm ± 0.1mm |
|
- Fused Silica material is available
- High precision for laser system
- Other material is available if required
- Coating available if required
|
 |
Part Number |
A = B = C |
Surface Quality |
Flatness |
Angle Tolerance |
PRA1110 |
10.0mm |
60-40 |
λ /2 |
< 3 arc mins |
PRA1112 |
12.7mm |
60-40 |
λ /2 |
< 3 arc mins |
PRA1115 |
15.0mm |
60-40 |
λ /2 |
< 3 arc mins |
PRA1120 |
20.0mm |
60-40 |
λ /2 |
< 3 arc mins |
PRA1125 |
25.4mm |
60-40 |
λ /2 |
< 3 arc mins |
PRA1150 |
50.8mm |
60-40 |
λ /2 |
< 3 arc mins |
Part Number |
A = B = C |
Surface Quality |
Flatness |
Angle Tolerance |
PRA1203 |
3.2mm |
20-10 |
λ /8 |
< 30 arc seconds |
PRA1205 |
5.0mm |
20-10 |
λ /8 |
< 30 arc seconds |
PRA1210 |
10.0mm |
20-10 |
λ /8 |
< 30 arc seconds |
PRA1212 |
12.7mm |
20-10 |
λ /8 |
< 30 arc seconds |
PRA1215 |
15.0mm |
20-10 |
λ /8 |
< 30 arc seconds |
PRA1220 |
20.0mm |
20-10 |
λ /8 |
< 30 arc seconds |
PRA1225 |
25.4mm |
20-10 |
λ /8 |
< 30 arc seconds |
PRA1250 |
50.8mm |
20-10 |
λ /8 |
< 30 arc seconds |
|
        |
|
