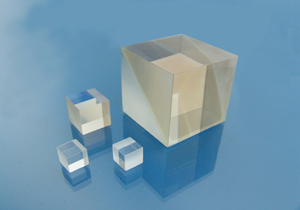

Broadband Beamsplitter Cube

Specifications:
Material: BK7 grade A Optical Glass
Dimension Tolerance: ± 0.2mm
Surface Quality: 60-40 scratch and dig
T/R: 50/50 ± 5% for natural light
T/R: T = (T_s+T_p)/2 , R = (R_s + R_p)/2
Surface Flatness: 1/4 @ 632.8nm
Beam Deviation: < 3 arc minutes

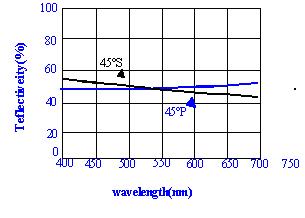

Non Polarization Beamsplitter	Random Broadband Beamsplitter R = 50.0% ± 5.0% @ 650-900nm

Dimensions: 10x10x10 (mm³)

Wavelength (nm)	450-650	650-900	900-1200	1200-1550
Part Number	CBS1110	CBS1210	CBS1310	CBS1410

Dimensions: 12.7x12.7x12.7 (mm³)

Wavelength (nm)	450-650	650-900	900-1200	1200-1550
Part Number	CBS1112	CBS1212	CBS1312	CBS1412

Dimensions: 15x15x15 (mm³)

Wavelength (nm)	450-650	650-900	900-1200	1200-1550
Part Number	CBS1115	CBS1215	CBS1315	CBS1415

Dimensions: 20x20x20 (mm³)

Wavelength (nm)	450-650	650-900	900-1200	1200-1550
Part Number	CBS1120	CBS1220	CBS1320	CBS1420

Dimensions: 25.4x25.4x25.4 (mm³)

Wavelength (nm)	450-650	650-900	900-1200	1200-1550
Part Number	CBS1125	CBS1225	CBS1325	CBS1425
