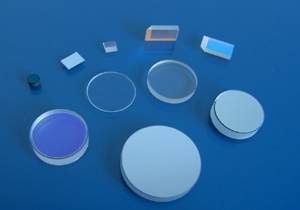

Dielectric Coated Mirror
- For high power / high energy laser system application
- Dichroitic Mirror from Harmonic separators
- Output coupling coated for solid state laser
- Broadband mirror for UV, VIS, NIR application
- OEM design is available
Specifications:
Substrate Material: BK7, Fused Silica, Pyrex
Diameter Tolerance: +0/-0.2mm
Thickness Tolerance: ± 0.2mm
Surface Quality: 20-10 for laser application
Surface Quality: 60-40 for instrumental application
Flatness: Up to λ /10 @ 633nm
Coating: R ≥ 99.8% , 0° AOI
Coating: R ≥ 99.5% , 45° AOI |
|
|
Type |
Size |
Round Plate |
From 3mm - 400mm diameter |
Square Plate |
From 1x1mm - 300x300mm |
Elliptical Plate |
Up to 100x141mm |
Round Concave Lens |
Radii from R 1mm to R 10,000mm |
Right Angle Prism |
From 3x3mm - 80x80mm |
|
    |
|
