Diode Laser Pumped Coating:

Sinoceramics provides this diode laser pumped solid state lasers, such as the Nd:YAG or Nd:YVO₄ laser, along with its frequency doubling crystals KTP, BBO, Wave Plates, and other glass mirrors.

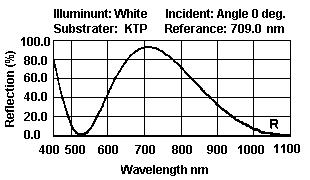

	AR/AR @ 1064 & 532nm on KTP Part No. DPO-DAR
R < 0.1% @ 1064nm R < 0.5% @ 532nm

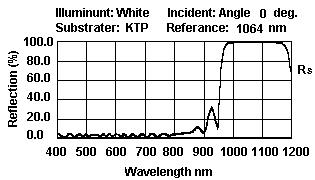

HR @ 1064 & HT @ 532nm on KTP Part No. DPO-HAR
	R > 99.8% @ 1064nm R < 5.0% @ 532nm

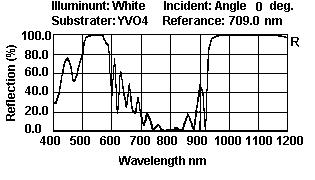

	HR @ 1064 & 532nm, HT @ 808nm on YVO₄ Part No. KPO-VD
R > 99.8% @ 1064nm R > 99.0% @ 532nm R < 5.0% @ 808nm
HR @ 1064nm & HT @ 808nm on YVO₄ Part No. DPO-GC
	R > 99.8% @ 1064nm R < 5.0% @ 532nm

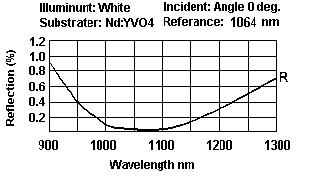

	AR @ 1064nm on Nd:YVO₄ Part No. DPO-VA
R < 0.1% @ 1064nm

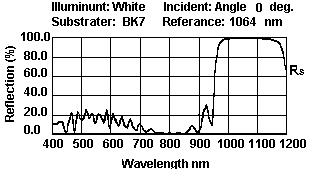

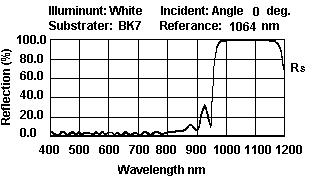

HR @ 1064 & HT @ 532nm on BK7 Part No. DPO-GC
	R > 99.8% @ 1064 nm R < 5.0% @ 532nm
